XGY-10/20管材静液压试验机
编号: A003
价格: 300
产品详情

XGY-10/20管材静液压试验机/管材爆破试验机(1-100路)

   数显表控制,触摸屏控制,计算机控制,等多种控制方式。运行安全可靠,实用性强。管道耐压专业检测设备。可以提供 中文 英文 法文 俄文等多种操作系统,用于出口。

管材静液压试验机/管材爆破试验机简介:

  管材静液压试验机是根据GB/T6111—2003《流体输送用热塑性塑料管材耐内压试验方法》以及GB/T15560—1995《流体输送用塑料管材液压瞬时爆破和耐压试验方法》标准的要求而设计、生产的,用于测定热塑性管材、复合管材(如PP—R、PP—B、PP—A、PE、PE—X、PVC、PVC—U、PVC—C及铝塑复合管等各种管材)在长时间恒定内压和恒定温度下的耐压破坏时间或瞬时爆破的最大压力值,是塑料管材生产厂商及检测机构必备的检测设备。此设备能够充分体现企业的产品质量的水平。

基本原理:根据管材的不同温度和压力和环应力,在工业控制机上输入不同的参数,高压泵产生高压液体,经过压力控制系统,由高压软管输送给介质恒温箱内的试样中,进行管材的长时间静液压试验。

管材静液压试验机/管材爆破试验机符合标准:

符合标准

GB/T6111—2003《流体输送用热塑性塑料管材耐内压试验方法》

GB/T15560—1995《流体输送用塑料管材液压瞬时爆破耐压试验方法》

GB/T18742.1—2002《冷热水用聚丙烯   第二部分:管材》

GB/T18742.2—2002《冷热水用聚丙烯   第二部分:管材》

GB/T18742.3—2002《冷热水用聚丙烯   第三部分:管件》

GB/T13663—2000  《给水用聚乙烯PE管材》

GB/T15558.1—2003《燃气埋地用聚乙烯PE管材》

GB/T18992.1—2003《冷热水用交联聚乙烯管道系统总则》

GB/T18992.2—2003《冷热水用交联聚乙烯管道系统管材》

GB/T10002.1—2006《给水用硬聚氯乙烯(PVC—U)管材》

GB/T10002.2—2003《给水用硬聚氯乙烯(PVC—U)管件》

GB/T18993.1—2003《冷热水用氯化聚氯乙烯管道系统》

GB/T18993.2—2003《冷热水用氯化聚氯乙烯管道系统》

GB/T18992.1—2003《冷热水用氯化聚氯乙烯管道系统管件》

GB/T18997.1—2003《铝塑复合压力管铝管搭接焊式铝塑管》

GB/T18997.2—2003《铝塑复合压力管铝管对接焊式铝塑管》

ASTM D1598、ASTM D1599

管材静液压试验机/管材爆破试验机主要技术参数:

1、(1-100路)独立控制试验压力和试验时间

2、加压范围:0—16.00MPa/20.00MPa

3、最高工作压力16.00MPa/20.00MPa

4、高压柱塞泵

(1)压力:20MPa

(2)流量:251L/min

(3)转速:1450rpm/min

5、控压精度:试验压力值上限的+2%,下限的-1%

6、压力值分辨率:0.001MPa

7、压力传感器:试验压力采样频率0.1秒

8、控温范围: 室温-95℃  20—95(配制冷)

9、控温精度:平均温差±1℃,最大偏差±1℃

10、计时范围:0.001—9999h

11、计时精度:0.1%

12、水箱加热功率:9kW

13、主机电源:380VAC/220VAC混用(三相四线制)

管材静液压试验机/管材爆破试验机技术特点:

①本项目设备可以自动控制,无须手动调整,方便快捷。

②本项目设备每路由三个电磁阀独立控制,一路控制管内高压液体的大流量,实现快速打压。一路控制管内高压液体的小流量,慢速补压。还有一路慢速卸压。这样就改变以往流量小,打压速度慢的缺点,彻底改变由一路控制的局面,大大提高了试验数据的准确性。

③预热时间长这是行内该设备普遍存在的问题,本项目中的设备采用恒温介质水,使高压管内的水与浸泡达到一定时间水箱内的水,水温一致,使试验节省时间,达到理想数据。

④多路分控改变以往一路单控的局面,为客户提供更大的试验空间。

⑤所有试验数据由PLC控制,自动设定,自定计算,所有压力都具有压力保持,使试验数据更加精确和稳定。

管材夹具部分为国标GB/T6111中的(A)型夹具

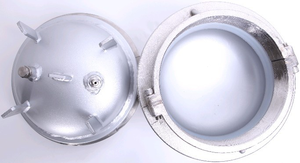

不锈钢夹具 (2).png


不锈钢304材质夹具   碳钢材质可供选择


操作简单 密封效果好 管材耐压封头 管材静液压夹具


管材静液压爆破试验机夹具规格可根据厂家需要选配(价格另议)


  Φ16、Φ20、Φ25、Φ32、Φ40、Φ50、Φ63、Φ75、Φ90、Φ110、


  Φ125、Φ140、Φ160、Φ180、Φ200、Φ225、Φ250、Φ315、Φ350


Φ400、Φ450、Φ500、Φ560、Φ630、Φ710  Φ800  Φ900   Φ1000  Φ1200  Φ1400


Φ1600、Φ1800   Φ2000



Pipe hydrostatic testing machine/pipe blasting machine (12)

Digital display table control, touch screen control, computer control, the control of a variety of ways.Safe and reliable operation, strong practicability.

Pipe hydrostatic testing machine/pipe blasting machine introduction

Pipe hydrostatic testing machine is according to GB/T6111-2003 "with thermoplastic fluid conveying pipe resistance to internal pressure test method and GB/T15560-1995" the fluid conveying with plastic tubing instantaneous blasting and hydraulic pressure test method standard requirements and the design, production, for the determination of thermoplastic pipe, composite pipe material such as PP, PP - R - B, PP, PE, A PE - X, PVC, PVC - U, PVC - C and various pipes such as aluminous model multiple tube), in the long time constant pressure and constant temperature pressure damage time or instantaneous blasting maximum pressure value, plastic tubing is the necessary test equipment manufacturers and testing institutions.This equipment can fully embodies the enterprise product quality level.

Basic principles: according to the different temperature and pressure and stress of pipe material, input different parameters in the industrial control machine, high pressure pump produce high pressure liquid, through the pressure control system, constant temperature box by high pressure hose to medium, in the specimen for pipe hydrostatic test for a long time.

Tube/pipe hydrostatic testing machine blasting machine conforms to the standard: GB6111-2003, GB/T15560-1995, GB/T10002.1-2011, GB/T10002.3-2011, CJ/T108-2015. The ISO 1167, GB/T 18252, ASTM F1335, ASTM D 1598, ISO 9080

Pipe hydrostatic testing machine/pipe blasting machine main technical parameters:

1, 12 road independently controlled test pressure and test time

2, pressure range: 0-10.00 MPa / 20.00 MPa

3, the highest working pressure 12.00 MPa / 20.00 MPa

4, high-pressure plunger pump

(1) pressure: 20 mpa

(2) the traffic: 251 l/min

(3) speed: 1450 RPM/min

5, the accuracy of pressure control: + 2% test pressure value limit, lower limit of 1%

6, the pressure value resolution: 0.01 MPa

7, pressure sensor: test pressure sampling frequency of 0.5 seconds

8, temperature control range: room temperature to 95 ℃

9, the temperature control precision: + / - 1 ℃, the average temperature difference maximum deviation plus or minus 2 ℃

10 and timing range: 0-9999 h

11, the timing precision: 1%

12, radiator heating power: 9 kw

13, host, power supply: 380 vac / 380 vac mixture (three phase four wire system)

Pipe hydrostatic testing machine/pipe blasting machine main configuration:

The main components

specifications

origin

Pressure pump

20 mpa

Imported from

Solenoid valve

12 mpa

The United States PARKERT imported

Pipe hydrostatic testing machine/pipe blasting machine technology innovation:

(1) in the experiment of the past, the customer can only behind the machine manually adjust the water flow, the project equipment can be controlled automatically, do not need to manually adjust, convenient and quick.

(2) the project equipment each routing three solenoid valve control independently, all the way to control tube high pressure fluid flow of large, fast.All the way to control the tube high pressure liquid flow of small, slow filling pressure.There is a slow pressure relief.Flow is small, thus changing ever to crack down on the shortcoming of slow speed, thoroughly change controlled by all the situation, greatly improve the accuracy of the test data.

(3) preheat time is long, the common problem is inline the equipment, the equipment in this project USES the constant temperature water medium, and the water of the high pressure tube soaking reaches a certain time of water in the tank, the water temperature, save test time, achieve ideal data.

(4) multiplex control change past all the way of single control situation, to provide customers with larger test space.

5. All the test data by PLC control, automatic setting, since the calculation of all, pressure has made experimental data more accurate and stable.

Pipe clamp fixture pressure pipe hydrostatic pressure head clamp tubing head Carbon steel clamp stainless steel plastic tubing head

Pipe clamp part for A type of national standard GB/T6111 clamp tubing pressure sealing pipe pressure test sealing clamp pressure clamp pressure head price



304 stainless steel material clamp tubing pressure testing machine tubing pressure seal joint pipeline pressure test clamp pipes hydrostatic testing machine static hydraulic test fixture



The operation is simple Tubing pipes hydrostatic pressure head clamp high-temperature resistant to low temperature fixture sealing effect is good



Pipe hydrostatic tester jig specification

Φ16、Φ20、Φ25、Φ32、Φ40、Φ50、Φ63、Φ75、Φ90、Φ110、


 Φ125、Φ140、Φ160、Φ180、Φ200、Φ225、Φ250、Φ315、Φ350


Φ400、Φ450、Φ500、Φ560、Φ630、Φ710  Φ800  Φ900   Φ1000  Φ1200  Φ1400  Φ1600等

etc

Function, scope of application:

Hydrostatic testing machine is suitable for all kinds of plastic pipes long-term hydrostatic test, instantaneous blasting pipe hydraulic test and long-term thermoplastic pipe under constant pressure resistance to damage the determination of the time.Is the scientific research institutes, quality inspection departments and tubing manufacturers necessary testing equipment.

Execution standard:

GB/T6111-2003 with thermoplastic fluid conveying pipe resistance to internal pressure test method"

GB/T15560-1995 fluid conveying instantaneous blasting with plastic tubing hydraulic pressure test method"

GB/T18742.1-2002 "hot and cold water use polypropylene in the second part: pipe"

GB/T18742.2-2002 "hot and cold water use polypropylene in the second part: pipe"

GB/T18742.3-2002 "the third part: hot and cold water use polypropylene pipe fittings"

GB/T13663-2000 "water supply with polyethylene PE pipe"

GB/T15558.1-2003 "gas buried with polyethylene PE pipe"

GB/T18992.1-2003 "hot and cold water with cross-linked polyethylene pipe system general rules"

GB/T18992.2-2003 "hot and cold water pipe using crosslinked polyethylene pipe system"

GB/T10002.1-1996 "water supply with rigid polyvinyl chloride (PVC - U) pipe,

GB/T10002.2-1996 "water supply with rigid polyvinyl chloride (PVC - U) pipe fittings"

GB/T18993.1-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping systems"

GB/T18993.2-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping systems"

GB/T18992.1-2003 "hot and cold water with chlorinated polyvinyl chloride (PVC) piping system fitting"

GB/T18997.1-2003 "lu: su composite pressure pipe of lap welding aluminum tube aluminous model"

GB/T18997.2-2003 "lu: su composite pressure tube aluminum pipe butt welding type lu: su"

ASTM D1598, ASTM D1599



Pipe hydrostatic testing machine fixture for the determination of thermoplastic pipe, composite pipe material such as PP, PP - R -, PP - A, B, PE - X, PVC, PE, PVC - U, PVC - C) and aluminous model multiple tube and pipe material, in the long time constant pressure and constant temperature pressure damage time or instantaneous blasting maximum pressure value, pressure testing shows that adopting digital pressure gauge, use external time relay Settings time setting.Plastic pipe manufacturers, the necessary test equipment and testing institutions.This equipment can fully embodies the enterprise product quality level.
